PassPort 1 Machine

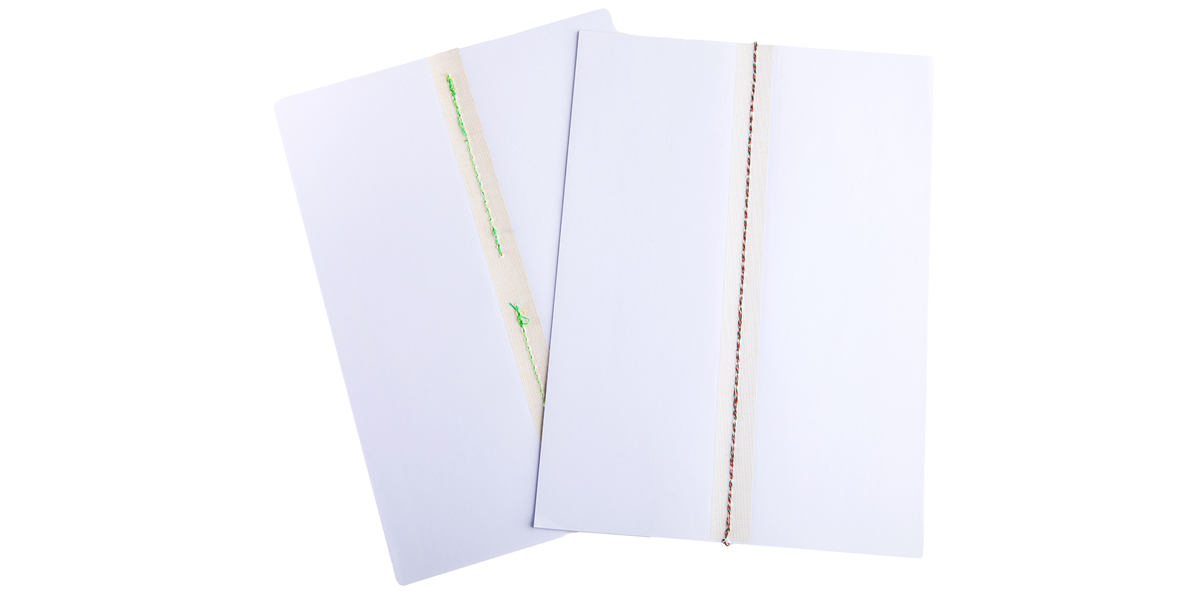

The PassPort 1 Machine binds passport or saving books by collating and sewing together different components. The Machine is equipped with sewing machines for chain and/or interlock stitching.

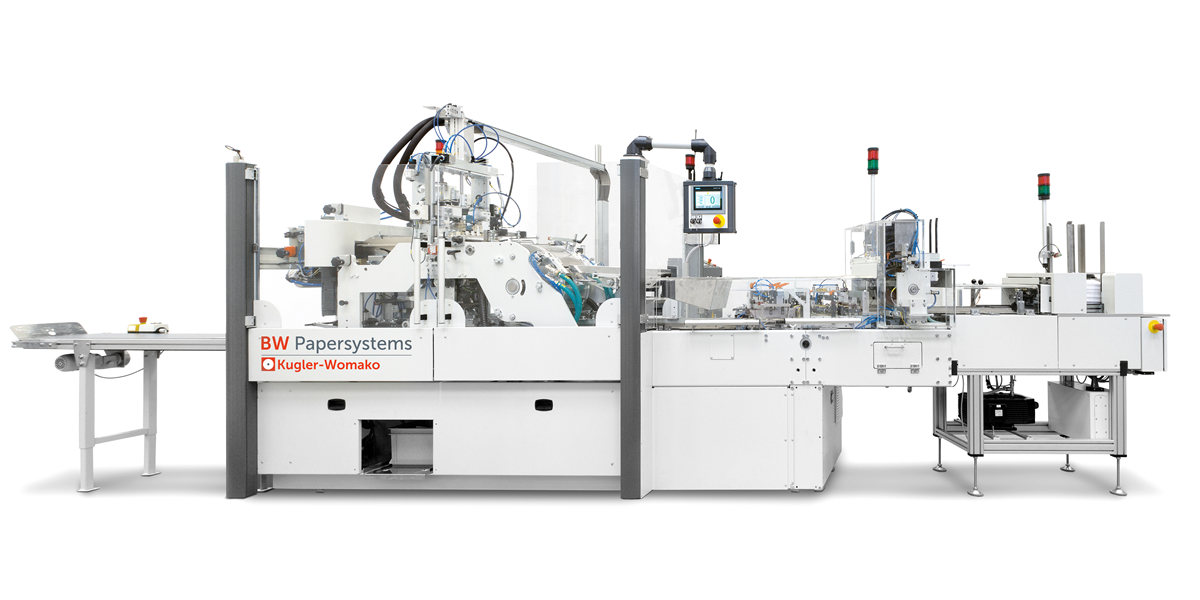

PassPort 2R Machine

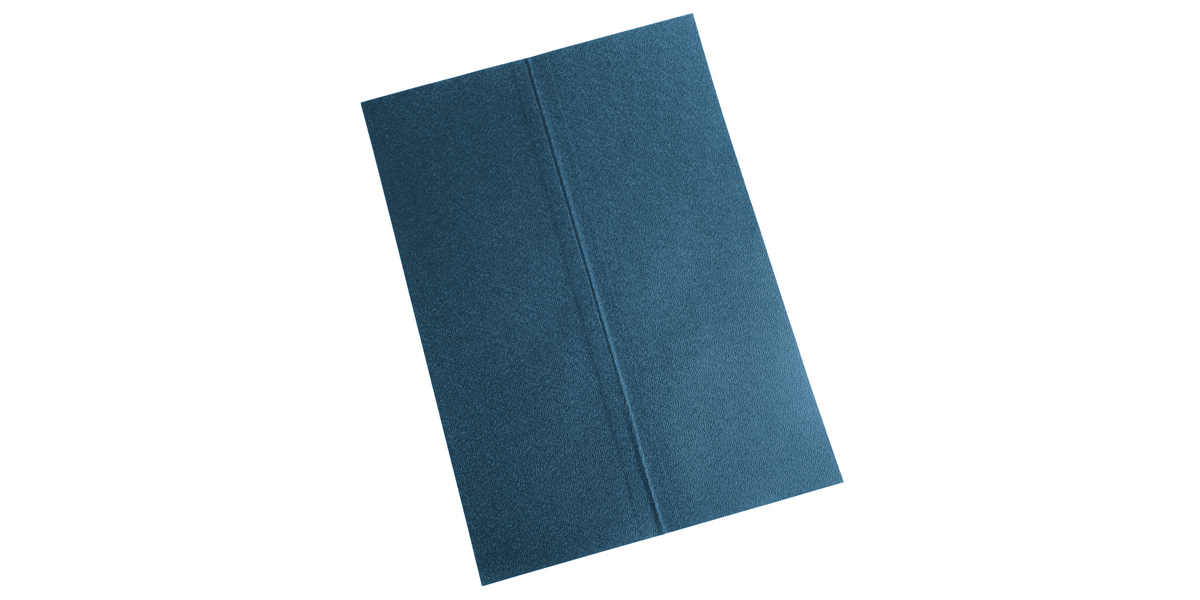

The PassPort 2R Machine laminates covers/e-covers/chip-inlays onto sewn layers and/or covers on inlays to produce e-covers.

Lamination with cold and/or PUR Hot melt glue.

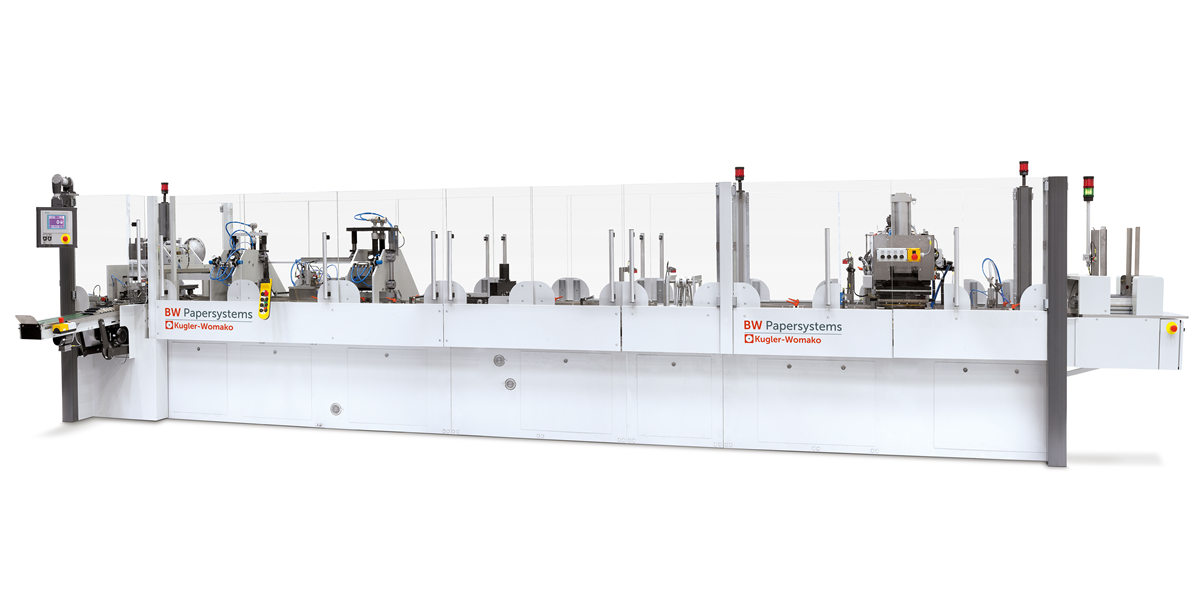

PassPort 3 Machine

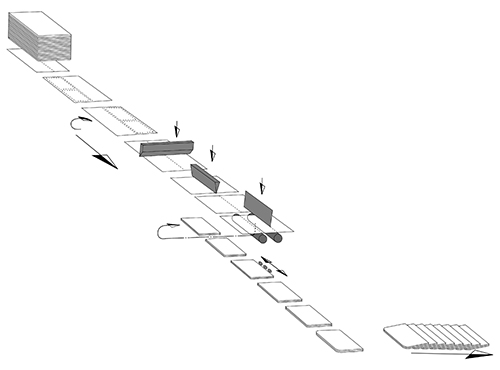

The layers which have been sewn and laminated in PassPort 1 and 2R machines are separated into single ups, folded and cut to size in a die cutting station using the PassPort 3 Machine.

The passport covers can be gold embossed.

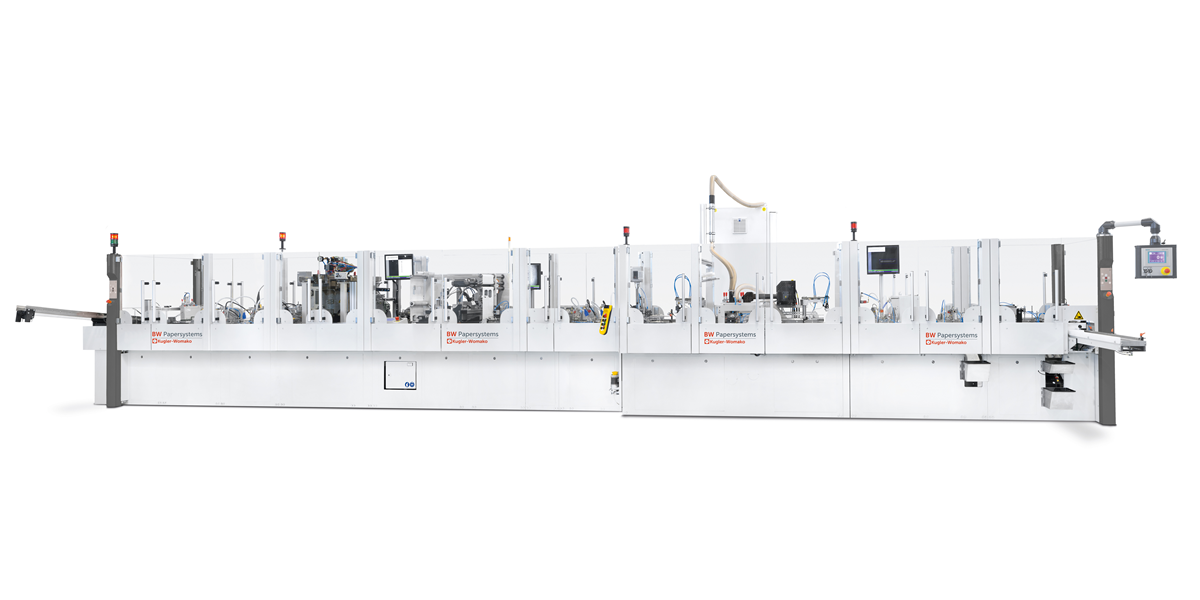

PassPort 4 Machine

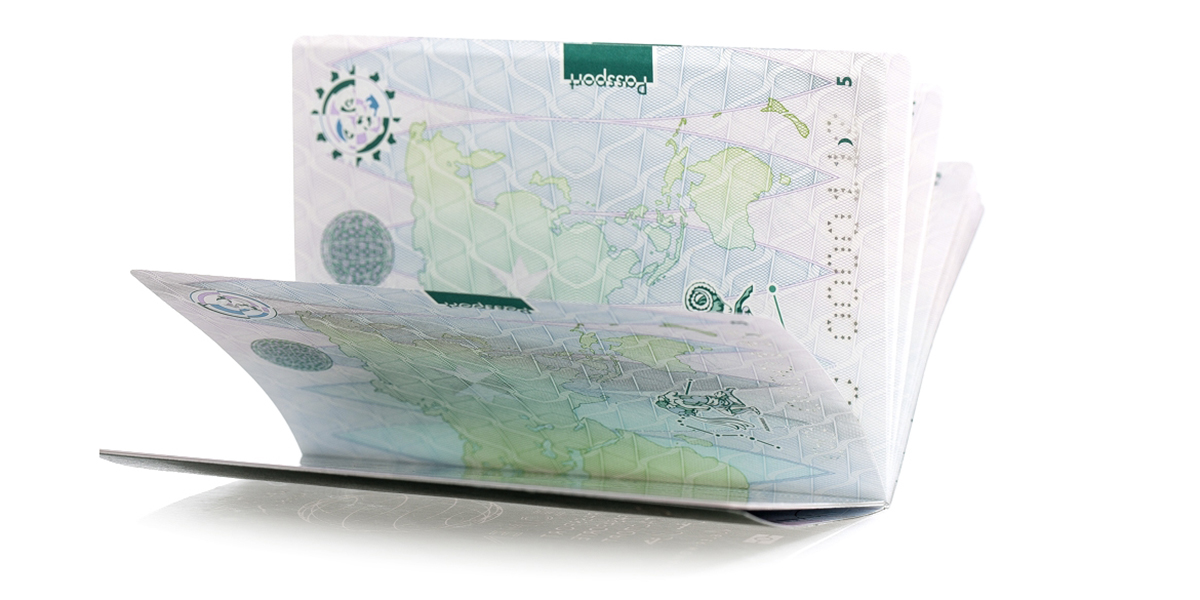

After the books have been sewn, laminated and cut to size using the Passport 1, 2R and 3 machines, the PassPort 4 numbers the books with a gothic number and/or a laser perforation. Alternatively, a barcode of the passport number can be applied into the book or printed onto a label.

Optionally chips can be simultaneously verified and initialized for e-passports.

Productivity and Technology

  • High productivity and reliable production in terms of quality and output.
  • Sophisticated technology for easy operation and maintenance

Design and Modularity

  • Rigid design for increased life expectancy (>30 years).
  • Modular layout in order to accommodate various types of passports and future upgrades.

PassPort 1 Basic Equipment

  • Variable number of feeders
  • Alignment of layers
  • Reinforcing tape application
  • Feeder for security film or polycarbonate cards with or without chip
  • Trimming
  • Sewing station for chain stitch and/or interlock stitching
  • Delivery

PassPort 2R Basic Equipment

  • Flat feeder for sewn layers.
  • Rotary feeder for chip-inlays.
  • Feeder for cover material, e-covers and/or chip-inlays.
  • Delivery in shingles.

PassPort 3 Basic Equipment

  • Feeding of sewn and laminated layers.
  • Separating cut into single ups.
  • Creasing station with optional heating.
  • Spine pressing station with optional heating.
  • Die-cutting.

PassPort 4 Basic Equipment:

  • Opening of cover and pages according to passport layout.
  • CRN impact number/barcode 39 printing.
  • Camera control of printed numbers/bar codes.
  • Registration of Chip-UIDs and passport numbers.
  • Opening of additional pages.
  • Laser perforation of the number with round or shaped holes (square, triangle, oval, star).
  • Offset transport for optimum utilization of laser cycles.
  • Camera control of perforated numbers.
  • Vertical delivery.

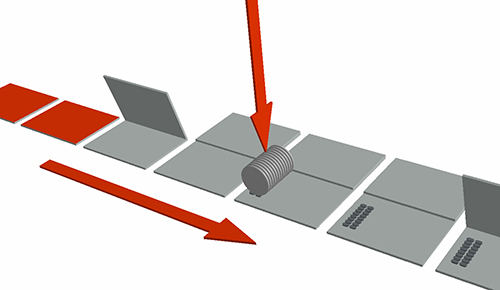

CRN impact number/barcode 39 printing

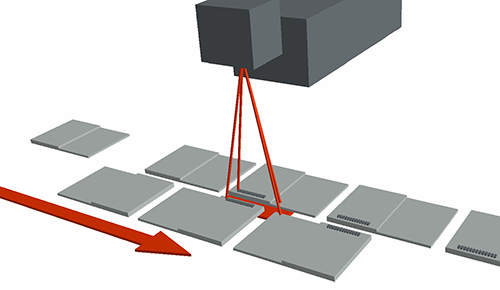

Laser numbering
